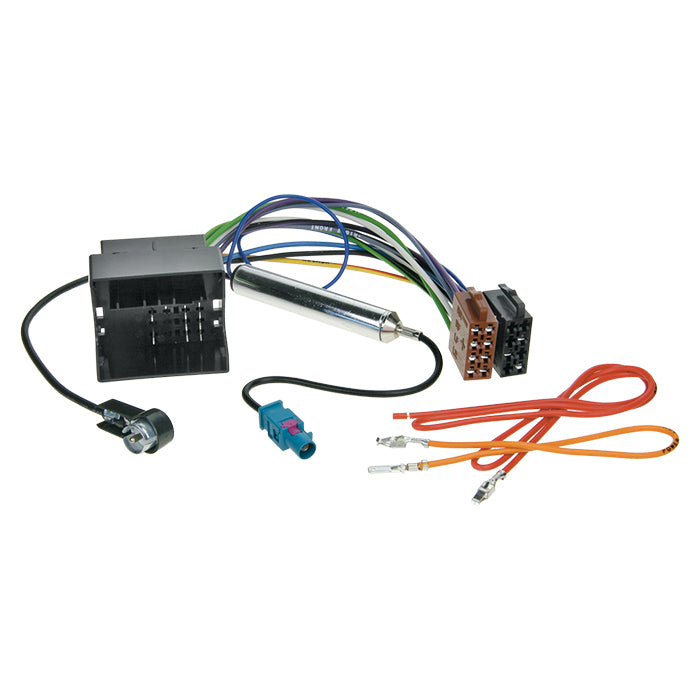

ISO Harness for Audi/Seat/Skoda/VW Quadlock/Fakra-ISO This ISO Harness Adapter makes it possible to connect aftermarket devices to the car's original connector in the radio mounting slot. The adapter supports Quadlock to ISO as well as Fakra to ISO with phantom power and retains access to important signals such as 12V constant current, ignition, ground, light, antenna remote and speaker connection for front and rear speakers. Depending on the car's equipment, some signals may be missing and require connection via other points (e.g. fuse box) or additional interfaces such as CAN-bus, LFB, amplifier system adapter or camera adapter. The availability of the signals should always be checked before installation. Connector: 40 Pin Quadlock VAG Fakra Z(m) > ISO(m) Audi / Seat Exeo with 2 DIN OEM HU Connection: Red +12V ignition (Clamp 15, fused), Orange +12V light/dimmer (Clamp 58) Fits: Various models from Audi, Seat, Skoda and VW
Technical information:
- Connector: 40 Pin Quadlock VAG
- Fakra Z(m) > ISO(m)
- Audi / Seat Exeo with 2 DIN OEM HU
- Connection: Red +12V ignition (Clamp 15, fused), Orange +12V light/dimmer (Clamp 58)
Suitable for:
Audi A1 (8X) 07/2010 - 04/2018
Audi A3 (8P) 05/2003 - 04/2005
Audi A3 (8P) 10/2004 - 04/2013
Audi A4 (B6 8E) 11/2000 - 10/2005
Audi A4 (B7 8E) 11/2004 - 02/2009
Audi A5 (8T/8F) 06/2007 - 10/2011
Audi A6 (C5/B4) 05/2001 - 03/2006
Audi Q3 (8U) 10/2011 - 11/2014
Audi Q3 (8U) 02/2015 - 06/2018
Audi Q5 (8R) 09/2008 - 05/2012
Audi Q5 (8R) 09/2012 - 01/2017
Audi R8 (42) 04/2007 - 05/2015
Audi TT (8J) 04/2006 - 04/2010
Audi TT (8J) 08/2010 - 03/2014
Seat Alhambra (7N) 10/2010 - 04/2015
Seat Altea (5P) 06/2004 - 03/2009
Seat Altea (5P) 04/2009 - 07/2015
Seat Exeo (3R) 03/2009 - 05/2013
Seat Ibiza (6J) 06/2008 - 02/2012
Seat Ibiza (6J) 03/2012 - 06/2015
Seat Leon (1P) 09/2005 - 03/2009
Seat Leon (1P) 04/2009 - 11/2012
Seat Mii (AA) 12/2011 - 06/2019
Seat Toledo (5P) 01/2005 - 10/2009
Seat Toledo (NH) 03/2013 - 05/2015
Skoda Citigo (AA) 06/2012 - 05/2017
Skoda Fabia (5J) 03/2007 - 04/2010
Skoda Fabia (5J) 06/2010 - 06/2014
Skoda Octavia (1Z) 06/2004 - 05/2009
Skoda Octavia (1Z) 01/2009 - 03/2013
Skoda Rapid (NH) 10/2012 - 04/2015
Skoda Roomster (5J) 09/2006 - 02/2015
Skoda Superb (3T) 07/2008 - 05/2013
Skoda Superb (3T) 06/2013 - 05/2015
Skoda Yeti (5L) 08/2009 - 10/2013
VW Amarok (2H) 07/2010 - 08/2016
VW Beetle (16) 11/2011 - 06/2016
VW Caddy III (2K) 10/2003 - 08/2010
VW Caddy III (2K) 09/2010 - 04/2015
VW Caravelle (7H) 10/2004 - 09/2009
VW Caravelle (7H) 09/2009 - 05/2015
VW CC (3C/35) 06/2008 - 11/2011
VW CC (3C/35) 02/2012 - 08/2016
VW Eos (1F) 05/2006 - 10/2010
VW Eos (1F) 10/2010 - 04/2015
VW Golf (1K1) 04/2005 - 06/2011
VW Golf V (1K) 11/2003 - 09/2008
VW Golf V (1KM) 06/2007 - 10/2009
VW Golf V Plus (1KP) 01/2005 - 02/2009
VW Golf VI (1K) 11/2008 - 09/2012
VW Golf VI (1KM) 11/2009 - 04/2013
VW Golf VI Plus (1KP) 03/2009 - 01/2014
VW Jetta III (1K5/1KM) 09/2005 - 10/2010
VW Jetta IV (162) 01/2011 - 08/2014
VW Multivan (7H) 02/2003 - 09/2009
VW Multivan (7H) 09/2009 - 05/2015
VW Passat B6 (3C2) 11/2005 - 07/2010
VW Passat B6 (3C5) 08/2005 - 07/2010
VW Passat B7 (3C/362) 11/2010 - 10/2014
VW Phaeton (3D) 05/2007 - 05/2010
VW Polo IV (9N) 03/2005 - 03/2009
VW Polo V (6R) 06/2009 - 01/2014
VW Scirocco III (13) 08/2008 - 04/2014
VW Sharan II (7N) 08/2010 - 04/2015
VW T5 Transporter (7H) 08/2003 - 09/2009
VW T5 Transporter (7H) 09/2009 - 05/2015
VW T6 (7HC) 07/2015 - 08/2019
VW Tiguan I (5N) 10/2007 - 02/2011
VW Tiguan I (5N) 06/2011 - 04/2016
VW Touareg I (7L) 06/2003 - 11/2006
VW Touareg I (7L) 11/2006 - 02/2010
VW Touran (1T) 01/2003 - 09/2006
VW Touran (1T) 11/2006 - 04/2010
VW Touran (1T) 08/2010 - 04/2015
VW UP! (AA) 12/2011 - 06/2016
